Réf. B05032

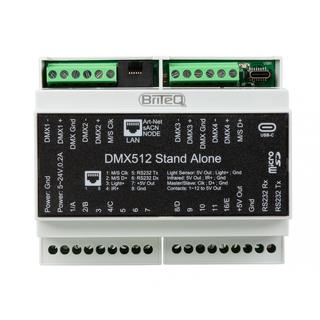

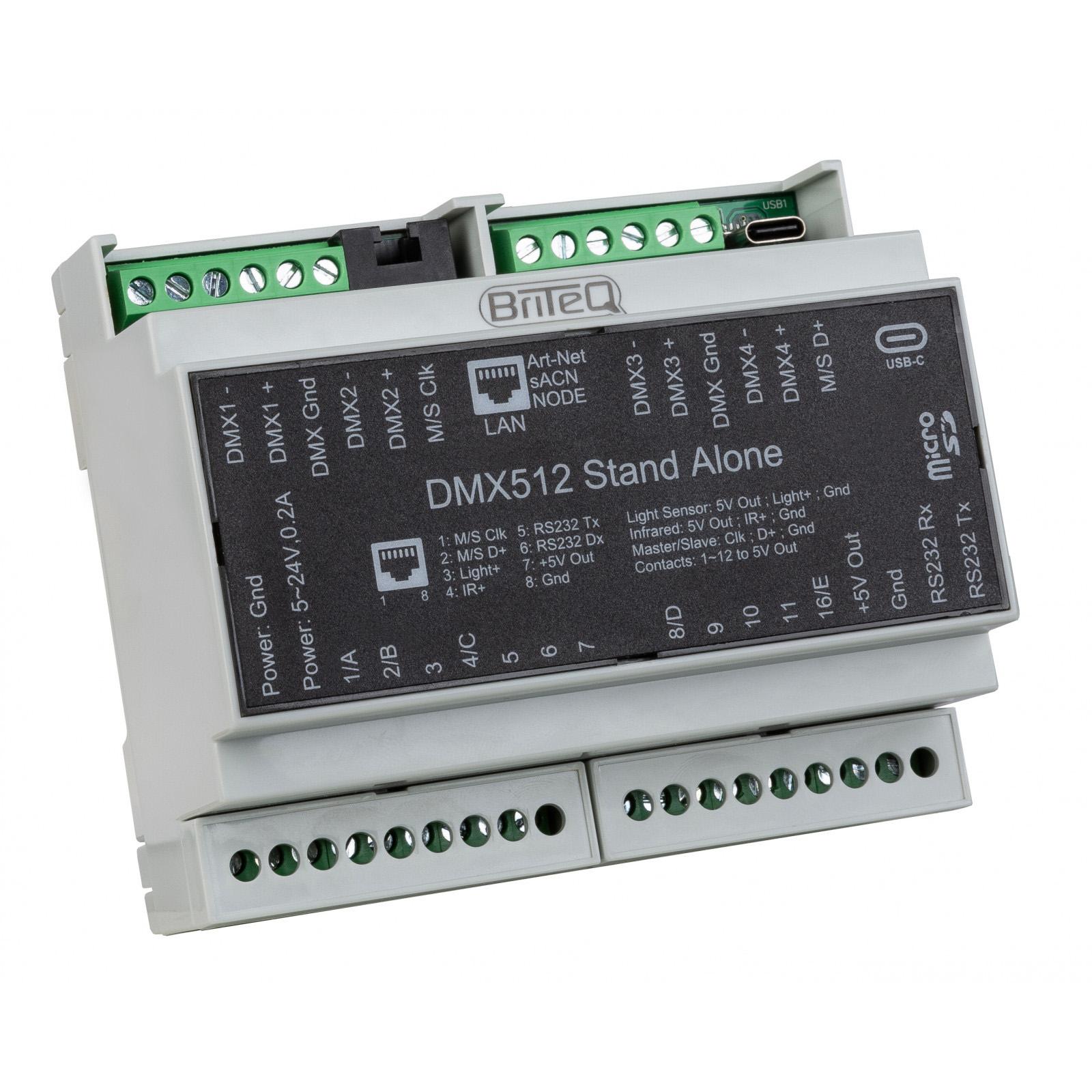

LD-1024DIN NET
1024 Channel DMX interface & Multizone controller with Ethernet port for Local Area Network (LAN, WLAN) that can be easily mounted on a DIN Rail
Connectez-vous pour commanderDescription
- 1024 Channel DMX interface with ETHERNET port for Local Area Network (LAN, WLAN).
- Can be used with the Wi-Light APP from a mobile device (Android + iOS)
- 1024 output channels when used with a computer
- Multizone 1024 output channels when used standalone without computer
- 30 minutes of Lighting, Audio and Video timeline synchronization with Pro DMX software
- Works with the Chromateq Led Player, Pro DMX, Pixxem, Studio DMX and Wi-Light 2 software (included).
- Functions and control in standalone mode:
- Art-Net and sACN from SD card (including triggers)
- Node to decode Art-Net and sACN to DMX (4 universes)
- Automatic Real Time Clock triggering for different scenes (day, week, month, year)
- External Triggering via 12 smart contacts
- RS232 In/Out (16 characters for RS232 triggers, commands or orders)
- UDP / Ethernet triggers and commands (from SDK)
- Default start scene, scene priority, cross fade time
- Total control via the Wi-Light 2 app (Android + iOS)
- Multiple Zone control: 10 different programs can run simultaneously
- Master/Slave mode for up to 64 interfaces connected together
- An optional external infra-red receiver can be connected to the unit (LD-512Kit-IR = IR receiver + 2 remote controllers)
- Micro SD card slot for memory extension
- Power supply: 5-24V, 0.2A input or 5V DC via USB-C
